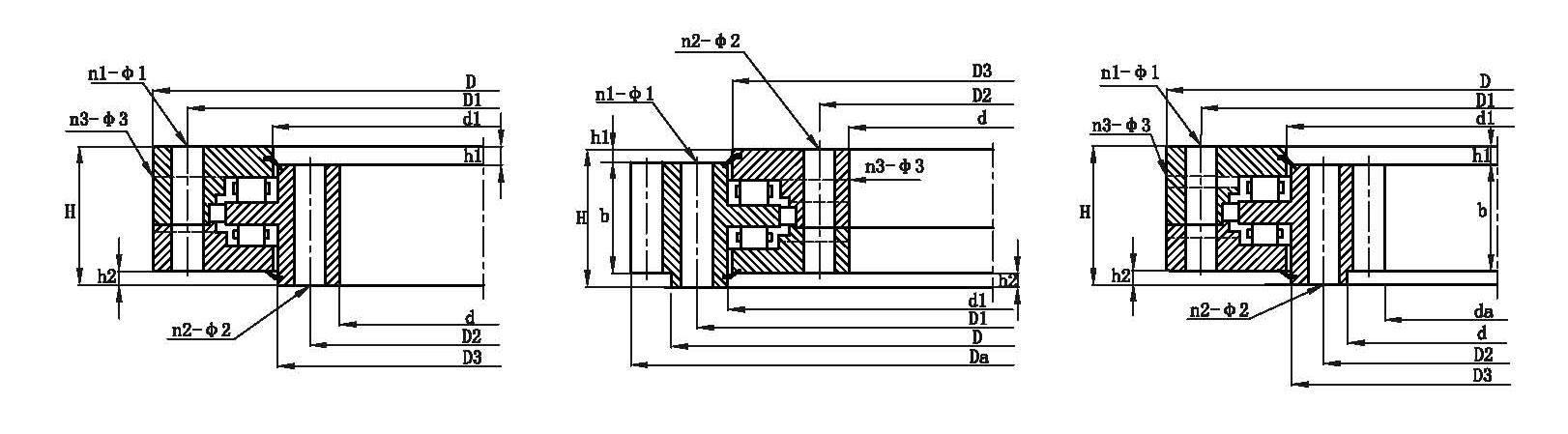

Three-Row Roller Slewing Bearings


Specification:
Outer Diameters: Standard models from 480 mm to 5000 mm (18" to 196")

Capacity:
Maximum Thrust: 105,060 KN (23,630,000 lbs)
Maximum Moment: 110,000 KN-M (81,136,000 ft-lbs)

Gearing: Non-gear, External Gear, Internal Gear

Catalog Downloads:
Three-Row Roller Slewing Bearing(Ungear).pdf
Three-Row Roller Slewing Bearing(Internal gear).pdf
Three-Row Roller Slewing Bearing(External gear).pdf

Design Your Bearings Worksheet
Material:






Material USA China Germany British
Alloy Steel AISI 4140 GB42CrMo DIN42CrMo4 BS708A42
Carbon Steel  AISI 1045 GB45 DINCK45 BS060A42
